What is a flow battery?

A flow battery is a rechargeable battery in which electrolyte flows through one or more electrochemical cells from one or more tanks. With a simple flow battery it is straightforward to increase the energy storage capacity by increasing the quantity of electrolyte stored in the tanks. The electrochemical cells can be electrically connected in series or parallel, so determining the power of the flow battery system. This decoupling of energy rating and power rating is an important feature of flow battery systems.

The interconversion of energy between electrical and stored chemical energy takes place in the electrochemical cell. This consists of two half cells separated by a porous or an ion exchange membrane. As well as permitting ionic conduction, the separator minimises the loss of the generated electroactive species in the half cells and so maintains high coulombic efficiency. The redox reactions during charge and discharge take place at the electrodes of the half cells. In its simplest form the electrodes themselves, usually carbon felt, are not altered by these electrochemical reactions.

The cell voltage is the difference between the negative electrode reaction and that at the positive electrode. During charging electrons released at the positive electrode through oxidation of the electroactive species in that half-cell are pushed round the circuit to the negative electrode where reduction of electroactive species in that half-cell takes place. The processes are reversed on discharge. The electroactive materials are redox pairs, i.e. chemical compounds that can reversibly undergo reduction and oxidation.

The choice of redox pairs is often used as a description of the type of flow battery. Some well-known redox pairs are:

  • Vanadium / vanadium (which uses the four different valency states of vanadium)
  • Iron / chromium
  • Zinc / bromine

Usually, both the electroactive species in the redox pairs are soluble in aqueous acid or alkali solutions. However, in some flow batteries, such as zinc bromine, one active species (in this case zinc metal) is deposited on the electrode. These types of batteries are sometimes known as hybrid redox flow batteries. Other flow battery systems use aqueous solutions of organic redox pairs, such as quinones and TEMPO, instead of metal-based redox couples, and other types operate in totally non-aqueous environments employing organic and organometallic redox couples.


  • The energy storage medium is often known as an electrolyte but some systems, for example the hydrogen-bromine, may use a gas (hydrogen) as the storage medium.
  • Because of the redox couples used as electroactive species in each half cell, a flow battery is sometimes known as a redox battery or a redox flow battery.
  • The formal definition of a battery is one or more electrochemical cells which can convert stored chemical energy into electrical energy when required. For a formal definition of a flow cell and a flow battery see the International Electrotechnical Commission’s standard IEC 62932-1.

Ancillary systems

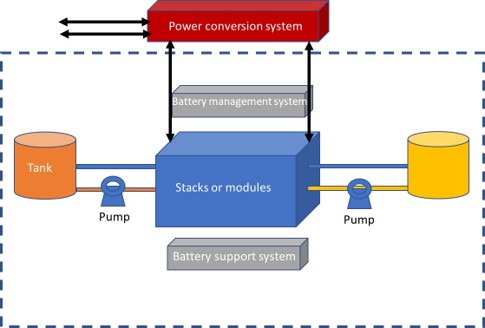

The practical application of a flow battery requires ancillary and support systems as shown below.

Advantages and benefits

Flow batteries have been installed in several places for a wide range of applications. They are a reliable, low cost and environmentally benign method for electrical energy storage.

  • Flow battery technology is modular and scalable so systems can be made to suit a wide range of applications, from power ratings of watts to megawatts, and with energy durations of many hours or even days.
  • The battery can be constructed of low cost and readily available materials, such as thermoplastics and carbon-based materials. Many parts of the battery can be recycled. Electrolytes can be recovered and reused, leading to low cost of ownership.
  • The battery materials have low flammability and low environmental impact.
  • The electrolytes can be used as part of the heat management strategy for the battery, reducing the need for complex heating or cooling of the battery system. This reduces costs.
  • Because electrochemical cells share a common electrolyte each cell can be in the same state of charge, simplifying cell balancing and battery operation. The state of charge of the whole system can be measured at a single point (or several measurement points can be used to check the correct functioning of the battery system).
  • Overcharging and fully discharging do not usually cause permanent damage to the electrodes or electrolytes.
  • There is limited self-discharge in standby mode and, when shut down, there is no self-discharge.
  • Energy storage capacities are independent of their power rating and so flow batteries are highly suitable for long-duration energy storage. As the incremental cost of increasing energy storage capacity reflects the cost of tanks and the electrolyte, the overall cost of a long-duration battery is lower than for other battery types.


Information regarding flow battery standards is available here.

Further reading

Redox flow batteries for energy storage, Jens Noack, Nataliya Roznyatovskaya, Chris Menictas and Maria Skyllas-Kazacos
Redox flow batteries – fundamentals and applications, CRC Press – Edited by Huamin Zhang, Xianfeng Li and Jiujun Zhang, ISBN 978-1-498-75394-4

IFBF conference proceedings

Each year presenters at an IFBF conference are asked to write a short, standalone paper to support their presentation. These papers are very informative; reporting on the latest progress in research programmes and providing views on the technical and commercial operation of flow batteries, materials, and components. Papers are then published in a book of Conference Papers, serving as a permanent record of the conference and a reference for others.

To date, the IFBF has published over 600 papers.

A complete list of previous conference papers is available here. Please contact us if you would like to purchase a printed book or ebook of Conference Papers.
